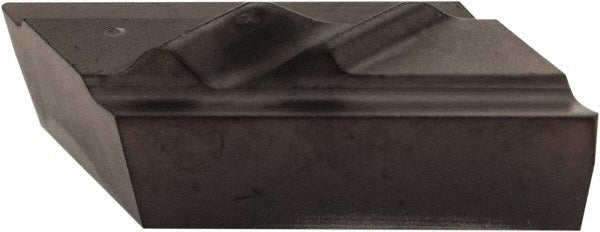

KCGX110302L15 Carbide Insert, Grade KCU10 - Kennametal 4045409

Kennametal

KCGX110302L15 Carbide Insert, Grade KCU10 - Kennametal 4045409

MFR# 4045409ISO/ANSI# KCGX110302L15Series Top Not

$26.31List $32.11 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
GradeKCU10
MaterialCarbide

Description

The Kennametal 4045409 is a KCGX110302L15 carbide indexable insert, grade KCU10. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

ApplicationsProfiling; Turning
ChipbreakerCommon
Coating processPVD
Corner radius0.0080
Hole diameter0.0000
Included angle55
Inscribed circle in1/4
Insert handLeft Hand
Insert height0.1250
Insert holding methodScrew
Insert length in3/8
Insert materialCarbide
Insert size code508
Insert styleNPL
Iso codeKCGX110302L15
Manufacturer gradeKCU10
Material gradeP10; P20; M10; M20; K05; K20; N10; N20; S10; S20; H10
Maximum depth of cut0.1250
Msc manufacturer numberNPL508
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakeNegative
Relief angle0
ShapeParallelogram
Side length0.3750
StandardsNPL508; KCGX110302L15
Thickness in1/8
Width in1/4
