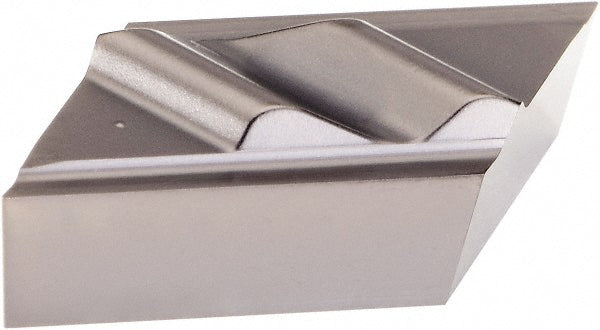

KNGX150401R15 Carbide Insert, Grade KCU10 - Kennametal 4045412

Kennametal

KNGX150401R15 Carbide Insert, Grade KCU10 - Kennametal 4045412

MFR# 4045412ISO/ANSI# KNGX150401R15Series Top Not

$33.53List $40.92 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
GradeKCU10
MaterialCarbide

Description

The Kennametal 4045412 is a KNGX150401R15 carbide indexable insert, grade KCU10. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

ApplicationsProfiling; Turning
ChipbreakerCommon
Coating processPVD
Corner radius0.0050
Hole diameter0.0000
Included angle55
Inscribed circle0.3730
Insert handRight Hand
Insert height0.1875
Insert holding methodScrew
Insert length in1/2
Insert materialCarbide
Insert size code1305
Insert styleNPR
Iso codeKNGX150401R15
Manufacturer gradeKCU10
Material gradeP10; P20; M10; M20; K05; K20; N10; N20; S10; S20; H10
Maximum depth of cut0.1664
Msc manufacturer numberNPR1305
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakeNegative
Rake angle10
Relief angle0
ShapeParallelogram
Side length0.4992
StandardsNPR1305; KNGX150401R15
Thickness in3/16
Width0.3730
