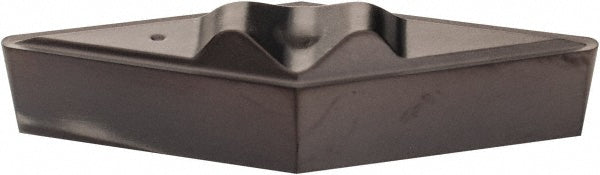

VCGR160408 Carbide Insert, Grade KCU10 - Kennametal 4045428

Kennametal

VCGR160408 Carbide Insert, Grade KCU10 - Kennametal 4045428

MFR# 4045428ISO/ANSI# VCGR160408Series Top Not

$36.59List $44.66 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
GradeKCU10
MaterialCarbide

Description

The Kennametal 4045428 is a VCGR160408 carbide indexable insert, grade KCU10. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

ApplicationsProfiling; Turning
ChipbreakerCommon
Coating processPVD
Corner radius0.0312
Hole diameter0.0000
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert height0.1875
Insert holding methodClamp
Insert length0.6540
Insert materialCarbide
Insert size code332
Insert styleVPGR
Iso codeVCGR160408
Manufacturer gradeKCU10
Material gradeP10; P20; M10; M20; K05; K20; N10; N20; S10; S20; H10
Maximum depth of cut0.2180
Msc manufacturer numberVPGR332
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Relief angle8
ShapeParallelogram
Side length0.6540
StandardsVPGR332; VCGR160408
Thickness in3/16
Width in3/8
