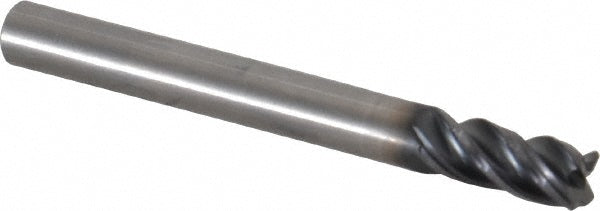

0.2362" 4-Flute Solid Carbide Corner Chamfer End Mill, AlTiN - Kennametal 4046267

Kennametal

0.2362" 4-Flute Solid Carbide Corner Chamfer End Mill, AlTiN - Kennametal 4046267

MFR# 4046267Series F4AS

$71.64List $91.89 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Kennametal 4046267 is a 0.2362 4-flute Solid Carbide corner chamfer end mill with a AlTiN finish for longer tool life. 0.5118 length of cut. Series F4AS.

Specifications

CentercuttingYes
Chamfer length0.0400
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Chamfer
Extended reachNo
Flute directionRight Hand
Helix angle38
Length of cut0.5118
Mill diameter0.2362
Number of flutes4
Shank diameter (mm)6.00
Shank typeStraight-Cylindrical
Single or double endSingle
