Kennametal

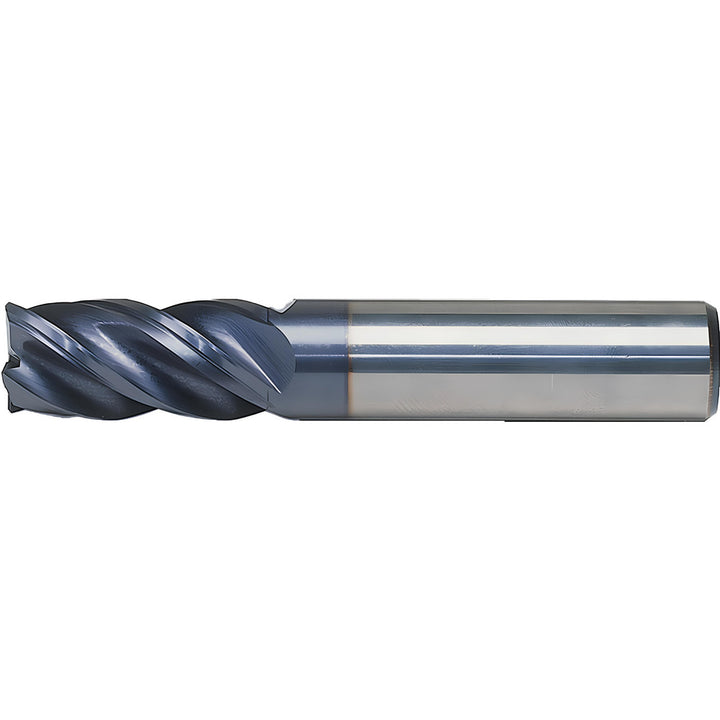

3/16" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Kennametal 4047707
MFR# 4047707Cat# HPHV188S4063CHSeries HPHV
$58.01List $74.41
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/16
Flutes4
MaterialSolid Carbide
CoatingAlTiN
Description
The Kennametal 4047707 is a 3/16 4-flute Solid Carbide (KCPM15) corner radius & corner chamfer end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, hard material. 5/8 length of cut, 2-1/4 overall length. Series HPHV.
Specifications
Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing
CentercuttingYes
Chamfer angle45
Chamfer length0.0150
Chamfer width0.0150
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeVariable
Helix styleMedium
Length of cut in5/8
Length typeRegular
Manufacturers catalog numberHPHV188S4063CH
Material gradeKCPM15
Material removal typeRoughing & Finishing
Mill diameter in3/16
Mill diameter tolerance-0.020 to -0.038 mm
Number of flutes4
Overall length in2-1/4
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
Reach length in5/8
Shank diameter in3/16
Shank diameter tolerance+0.000 to -0.008 mm
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexYes
