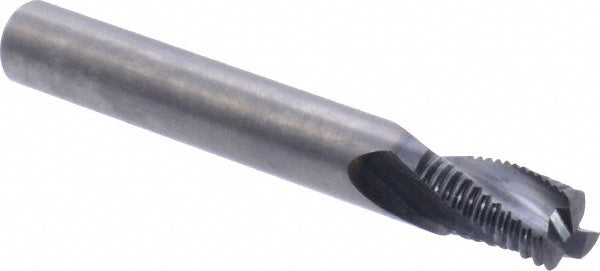

0.2500" 3-Flute Solid Carbide Roughing End Mill, AlTiN - Kennametal 4048689

Kennametal

0.2500" 3-Flute Solid Carbide Roughing End Mill, AlTiN - Kennametal 4048689

MFR# 4048689Series MDRHEC

$58.09List $74.51 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingAlTiN

Description

The Kennametal 4048689 is a 0.2500 3-flute Solid Carbide roughing end mill with a AlTiN finish for longer tool life. Series MDRHEC.

Specifications

CentercuttingYes
Chamfer width0.0118
Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix styleSlow
Length of cut0.3750
Maximum helix angle20
Mill diameter0.2500
Mill diameter frac in1/4
Number of flutes3
PitchFine
Shank diameter in1/4
Single or double endSingle
