Kennametal

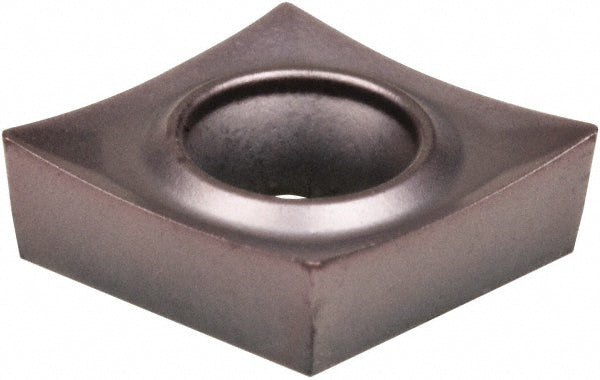

CCGT060202HP Carbide Insert, Grade KCU25, AlTiN - Kennametal 4050372
MFR# 4050372ISO/ANSI# CCGT060202Series Screw-On
$27.10List $33.08
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 4050372 is a CCGT060202HP carbide indexable insert, grade KCU25, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi insert codeCCGT21505
Ansi size code21505
Chip breakerHP
Chip breaker operationFinishing
Clearance codeC
Coating finishAlTiN
Coating processPVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness; Special, Super A
Hole diameter0.1102
Included angle80
Industry standard numberCCGT21505HP
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2543
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code21505
Insert styleCCGT
Insert thickness in3/32
Iso codeCCGT060202HP
Iso insert codeCCGT060202
Iso size code060202
Length range0.0000 - 0.3000
Manufacturers catalog number4050372
Manufacturer gradeKCU25
Material gradeC2; C6
Maximum depth of cut0.0847
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in1/4
Wiper edgeNo
