Kennametal

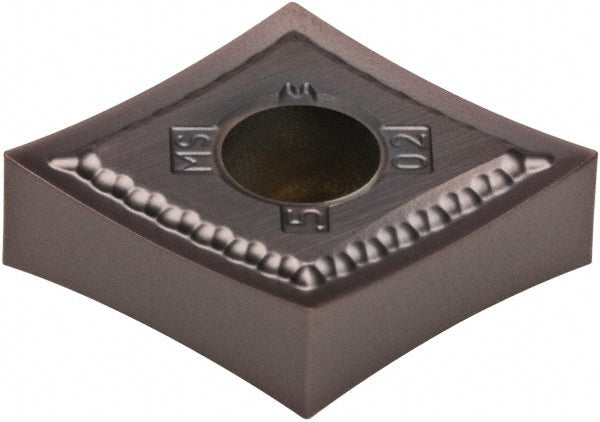

CNMG120402MS Carbide Insert, Grade KCU25, AlTiN - Kennametal 4050399
MFR# 4050399ISO/ANSI# CNMG4305MSSeries KENLOC
$25.38List $30.98
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 4050399 is a CNMG120402MS carbide indexable insert, grade KCU25, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Chip breakerMS
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2031
Included angle80degree
Industry standard numberCNMG4305MS
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5077
Insert materialCarbide
Insert shapeDiamond 80
Insert size code4305
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120402MS
Length range0.5000 - 0.6000
Manufacturers catalog number4050399
Manufacturer gradeKCU25
Material gradeC2; C6
Maximum depth of cut0.1691
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle13
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
