Kennametal

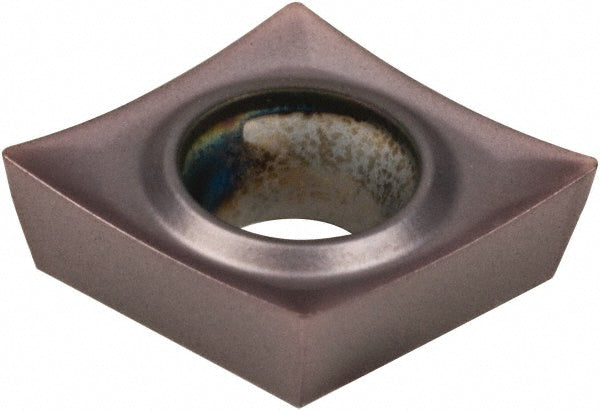

CPGT060208HP Carbide Insert, Grade KCU25, AlTiN - Kennametal 4050417
MFR# 4050417ISO/ANSI# CPGT2152HPSeries Screw-On
$27.04List $33.01
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond 80
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 4050417 is a CPGT060208HP carbide indexable insert, grade KCU25, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Chip breakerHP
Clearance codeP
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1102
Included angle80degree
Industry standard numberCPGT2152HP
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2539
Insert materialCarbide
Insert shapeDiamond 80
Insert size code2152
Insert styleCPGT
Insert thickness in3/32
Iso codeCPGT060208HP
Length range0.0000 - 0.3000
Manufacturers catalog number4050417
Manufacturer gradeKCU25
Material gradeC2; C6
Maximum depth of cut0.0845
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle11
StandardsANSI; ISO
Tolerance codeG
Width in1/4in
Wiper edgeNo
