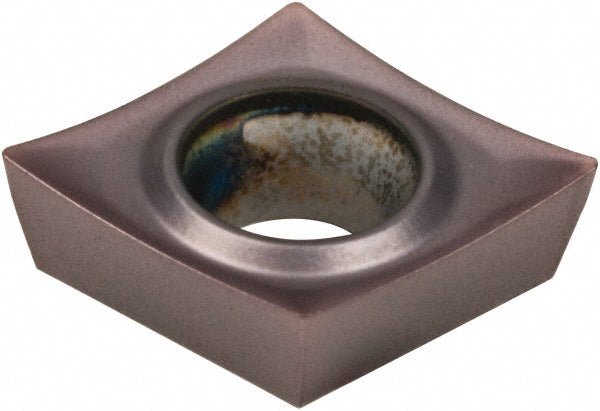

CPGT09T308HP Carbide Insert, Grade KCU25, AlTiN - Kennametal 4050420

Kennametal

CPGT09T308HP Carbide Insert, Grade KCU25, AlTiN - Kennametal 4050420

MFR# 4050420ISO/ANSI# CPGT09T308Series Screw-On

$30.65List $37.41 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeKCU25
MaterialCarbide
CoatingAlTiN

Description

The Kennametal 4050420 is a CPGT09T308HP carbide indexable insert, grade KCU25, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeCPGT3252
Ansi size code3252
Chip breakerHP
Chip breaker operationFinishing
Clearance codeP
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness; Special, Super A
Hole diameter0.1732
Included angle80
Industry standard numberCPGT3252HP
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3808
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code3252
Insert styleCPGT
Insert thickness in5/32
Iso codeCPGT09T308HP
Iso insert codeCPGT09T308
Iso size code09T308
Length range0.3000 - 0.4000
Manufacturers catalog number4050420
Manufacturer gradeKCU25
Material gradeC2; C6
Maximum depth of cut0.1268
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
