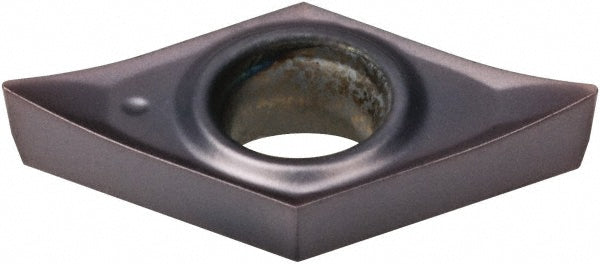

DCGT11T308HP Carbide Insert, Grade KCU25, AlTiN - Kennametal 4050426

Kennametal

DCGT11T308HP Carbide Insert, Grade KCU25, AlTiN - Kennametal 4050426

MFR# 4050426ISO/ANSI# DCGT11T308Series Screw-On

$30.91List $37.73 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
GradeKCU25
MaterialCarbide
CoatingAlTiN

Description

The Kennametal 4050426 is a DCGT11T308HP carbide indexable insert, grade KCU25, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeDCGT3252
Ansi size code3252
Chip breakerHP
Chip breaker operationFinishing
Clearance codeC
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness; Special, Super A
Hole diameter0.1732
Included angle55
Industry standard numberDCGT3252HP
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9156
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code3252
Insert styleDCGT
Insert thickness in5/32
Iso codeDCGT11T308HP
Iso insert codeDCGT11T308
Iso size code11T308
Length range0.7000 - 10.0000
Manufacturers catalog number4050426
Manufacturer gradeKCU25
Material gradeC2; C6
Maximum depth of cut0.3049
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
