Kennametal

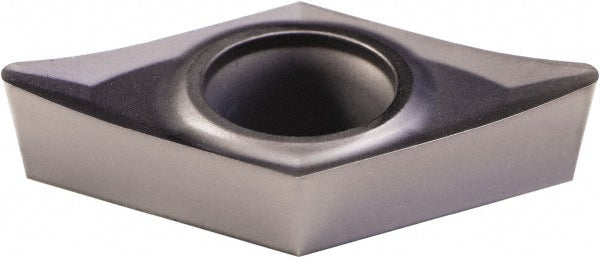

DPGT11T308HP Carbide Insert, Grade KCU25, AlTiN - Kennametal 4050431
MFR# 4050431ISO/ANSI# DPGT3252HPSeries Screw-On
$25.31List $30.90
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 55
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 4050431 is a DPGT11T308HP carbide indexable insert, grade KCU25, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Chip breakerHP
Clearance codeP
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1732
Included angle55degree
Industry standard numberDPGT3252HP
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9156
Insert materialCarbide
Insert shapeDiamond 55
Insert size code3252
Insert styleDPGT
Insert thickness in5/32
Iso codeDPGT11T308HP
Length range0.7000 - 10.0000
Manufacturers catalog number4050431
Manufacturer gradeKCU25
Material gradeC2; C6
Maximum depth of cut0.3049
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle11
StandardsANSI; ISO
Tolerance codeG
Width in3/8in
Wiper edgeNo
