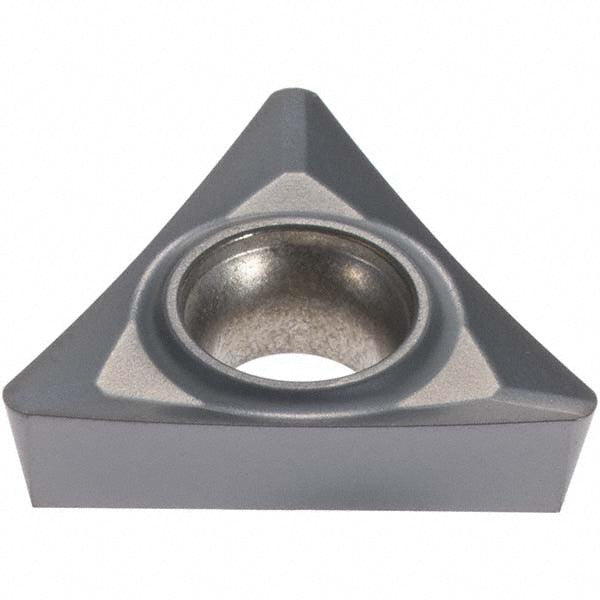

TPGT16T308HP Carbide Insert, Grade KCU25, AlTiN - Kennametal 4050445

Kennametal

TPGT16T308HP Carbide Insert, Grade KCU25, AlTiN - Kennametal 4050445

MFR# 4050445ISO/ANSI# TPGT16T308Series Screw-On

$33.33List $40.69 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeKCU25
MaterialCarbide
CoatingAlTiN

Description

The Kennametal 4050445 is a TPGT16T308HP carbide indexable insert, grade KCU25, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeTPGT3252
Ansi size code3252
Chip breakerHP
Chip breaker operationFinishing
Clearance codeP
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness; Special, Super A
Hole diameter0.1732
Included angle60
Industry standard numberTPGT3252HP
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6496
Insert materialCarbide
Insert shapeT - Triangle
Insert size code3252
Insert styleTPGT
Insert thickness in5/32
Iso codeTPGT16T308HP
Iso insert codeTPGT16T308
Iso size code16T308
Length range0.6000 - 0.6500
Manufacturers catalog number4050445
Manufacturer gradeKCU25
Material gradeC2; C6
Maximum depth of cut0.2163
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width0.6496
Wiper edgeNo
