Kennametal

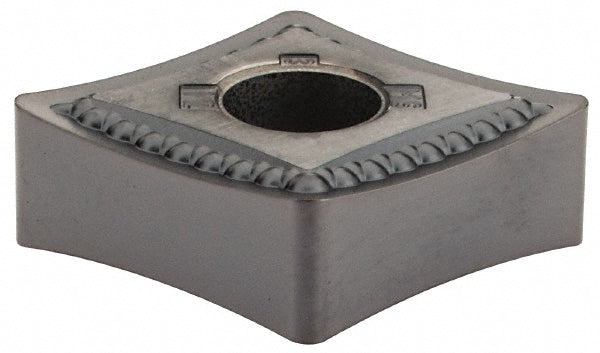

CNMG160612MS Carbide Insert, Grade KCU25, AlTiN - Kennametal 4050462
MFR# 4050462ISO/ANSI# CNMG543MSSeries KENLOC
$41.01List $50.05
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond 80
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 4050462 is a CNMG160612MS carbide indexable insert, grade KCU25, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Chip breakerMS
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius in3/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2500
Included angle80degree
Industry standard numberCNMG543MS
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6346
Insert materialCarbide
Insert shapeDiamond 80
Insert size code543
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG160612MS
Length range0.6000 - 0.6500
Manufacturers catalog number4050462
Manufacturer gradeKCU25
Material gradeC2; C6
Maximum depth of cut0.2113
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle13
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in5/8in
Wiper edgeNo
