Kennametal

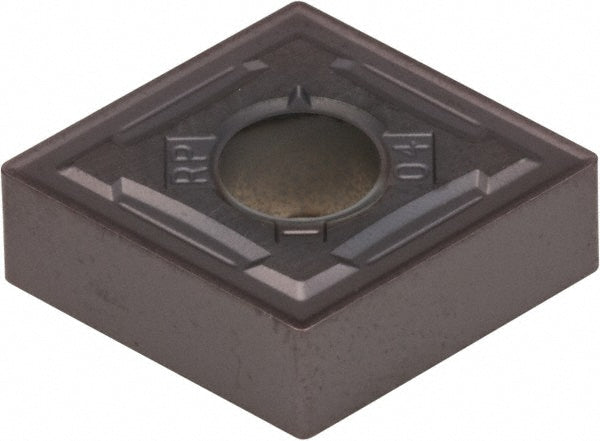

CNMG190612RP Carbide Insert, Grade KCU25, AlTiN - Kennametal 4050468
MFR# 4050468ISO/ANSI# CNMG643RPSeries KENLOC
$52.17List $63.68
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeDiamond 80
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 4050468 is a CNMG190612RP carbide indexable insert, grade KCU25, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Chip breakerRP
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.3125
Included angle80degree
Industry standard numberCNMG643RP
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.7616
Insert materialCarbide
Insert shapeDiamond 80
Insert size code643
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG190612RP
Length range0.7000 - 10.0000
Manufacturers catalog number4050468
Manufacturer gradeKCU25
Material gradeC2; C6
Maximum depth of cut0.2536
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle5
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in3/4in
Wiper edgeNo
