Kennametal

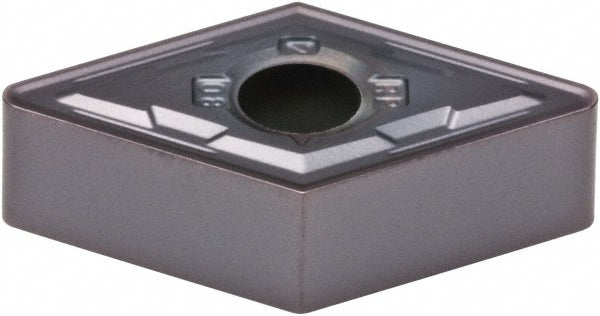

DNMG150408RP Carbide Insert, Grade KCU25, AlTiN - Kennametal 4050482
MFR# 4050482ISO/ANSI# DNMG150408Series KENLOC
$33.09List $40.39
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 4050482 is a DNMG150408RP carbide indexable insert, grade KCU25, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi insert codeDNMG432
Ansi size code432
Chip breakerRP
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness; Special, Super A
Hole diameter0.2031
Included angle55
Industry standard numberDNMG432RP
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.2208
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150408RP
Iso insert codeDNMG150408
Iso size code150408
Length range0.7000 - 10.0000
Manufacturers catalog number4050482
Manufacturer gradeKCU25
Material gradeC2; C6
Maximum depth of cut0.4065
Maximum depth of cut frac in13/32
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle5
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
