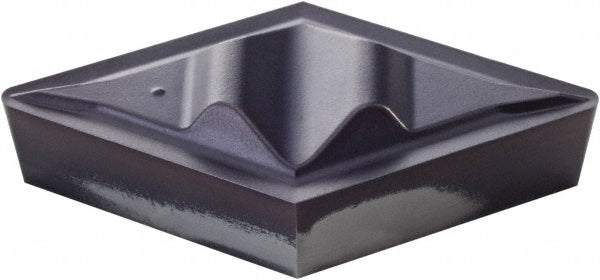

DCGR150408 Carbide Insert, Grade KCU25, AlTiN - Kennametal 4050522

MFR# 4050522ISO/ANSI# DCGR150408Series Top Not

$37.37List $45.62 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
GradeKCU25
MaterialCarbide
CoatingAlTiN

Description

The Kennametal 4050522 is a DCGR150408 carbide indexable insert, grade KCU25, AlTiN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium.

Specifications

ApplicationsProfiling; Turning
ChipbreakerCommon
Coating finishAlTiN
Coating processPVD
Corner radius0.0312
Hole diameter0.0000
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert height0.1875
Insert holding methodClamp
Insert length0.6104
Insert materialCarbide
Insert size code432
Insert styleDPGR
Iso codeDCGR150408
Manufacturer gradeKCU25
Material gradeFine Grain
Maximum depth of cut0.2035
Msc manufacturer numberDPGR432
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle8
ShapeParallelogram
Side length0.6104
StandardsDPGR432; DCGR150408
Thickness in3/16
Width in1/2
