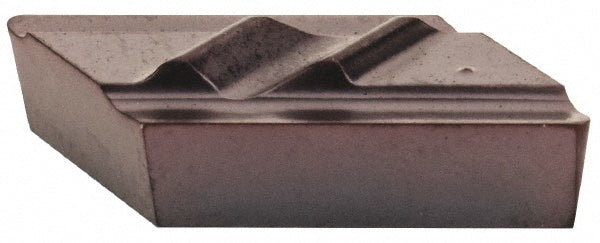

KCGX110304L15 Carbide Insert, Grade KCU25, AlTiN - Kennametal 4050533

Kennametal

KCGX110304L15 Carbide Insert, Grade KCU25, AlTiN - Kennametal 4050533

MFR# 4050533ISO/ANSI# KCGX110304L15Series Top Not

$26.31List $32.11 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
GradeKCU25
MaterialCarbide
CoatingAlTiN

Description

The Kennametal 4050533 is a KCGX110304L15 carbide indexable insert, grade KCU25, AlTiN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium.

Specifications

ApplicationsProfiling; Turning
ChipbreakerCommon
Coating finishAlTiN
Coating processPVD
Corner radius0.0156
Hole diameter0.0000
Included angle55
Inscribed circle in1/4
Insert handLeft Hand
Insert height0.1250
Insert holding methodScrew
Insert length in3/8
Insert materialCarbide
Insert size code51
Insert styleNPL
Iso codeKCGX110304L15
Manufacturer gradeKCU25
Material gradeFine Grain
Maximum depth of cut0.1250
Msc manufacturer numberNPL51
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
RakeNegative
Relief angle0
ShapeParallelogram
Side length0.3750
StandardsNPL51; KCGX110304L15
Thickness in1/8
Width in1/4
