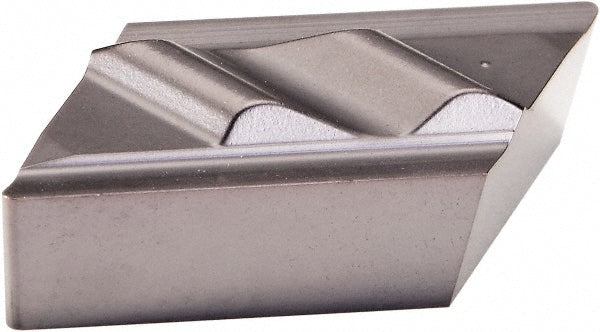

KNGX150404R20 Carbide Insert, Grade KCU25, AlTiN - Kennametal 4050535

Kennametal

KNGX150404R20 Carbide Insert, Grade KCU25, AlTiN - Kennametal 4050535

MFR# 4050535ISO/ANSI# KNGX150404R20Series Top Not

$33.53List $40.92 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
GradeKCU25
MaterialCarbide
CoatingAlTiN

Description

The Kennametal 4050535 is a KNGX150404R20 carbide indexable insert, grade KCU25, AlTiN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium.

Specifications

ApplicationsProfiling; Turning
ChipbreakerCommon
Coating finishAlTiN
Coating processPVD
Corner radius0.0156
Hole diameter0.0000
Included angle55
Inscribed circle0.3730
Insert handRight Hand
Insert height0.1875
Insert holding methodScrew
Insert length in1/2
Insert materialCarbide
Insert size code131F
Insert styleNPR
Iso codeKNGX150404R20
Manufacturer gradeKCU25
Material gradeFine Grain
Maximum depth of cut0.1663
Msc manufacturer numberNPR131F
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
RakeNegative
Rake angle10
Relief angle0
ShapeParallelogram
Side length0.4990
StandardsNPR131F; KNGX150404R20
Thickness in3/16
Width0.3730
