Kennametal

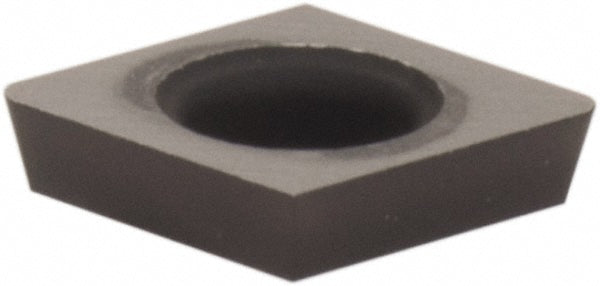

Diamond 5/32" IC Carbide Insert, Grade KCU25, AlTiN - Kennametal 4050609
MFR# 4050609Series Screw-On
$22.24List $27.15
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/32
ShapeDiamond
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 4050609 is a carbide indexable insert, grade KCU25, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
ChipbreakerFlat Top
Coating finishAlTiN
Coating processPVD
Corner radius in1/64
Hole diameter0.0840
Included angle80
Inscribed circle in5/32
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeDiamond
Insert size code12061
Insert styleCDHB
Length0.1587
Manufacturers catalog number4050609
Manufacturer gradeKCU25
Material gradeC2; C6
Maximum depth of cut0.0528
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle0
Relief angle15
StandardsANSI; ISO
Width0.1563
