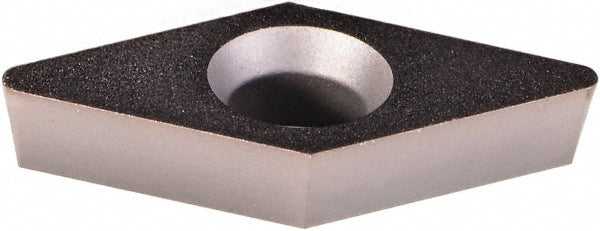

GPCD050104 Carbide Insert, Grade KCU25, AlTiN - Kennametal 4050616

MFR# 4050616ISO/ANSI# GPHWSeries Screw-On

$24.48List $29.87 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/32
ShapeNon-ISO Specialty Shapes
GradeKCU25
MaterialCarbide
CoatingAlTiN

Description

The Kennametal 4050616 is a GPCD050104 carbide indexable insert, grade KCU25, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeGPHW1211
Ansi size code1211
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeP
Coating finishAlTiN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness; Special, Super A
Hole diameter0.0840
Included angle45
Industry standard numberGPHW1211
Inscribed circle in5/32
Insert handNeutral
Insert holding methodScrew
Insert length0.4420
Insert materialCarbide
Insert shapeNon-ISO Specialty Shapes
Insert size code1211
Insert styleGPHW
Insert thickness in1/16
Iso codeGPCD050104
Iso insert codeGPHW
Length range0.4000 - 0.5000
Manufacturers catalog number4050616
Manufacturer gradeKCU25
Material gradeC2; C6
Maximum depth of cut0.1472
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle0
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeH
Width in5/32
Wiper edgeNo
