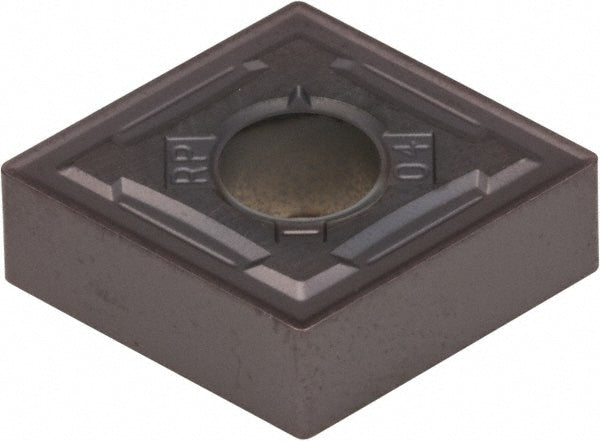

CNMG190612RP Carbide Insert, Grade KCU10, TiAlN - Kennametal 4050712

Kennametal

CNMG190612RP Carbide Insert, Grade KCU10, TiAlN - Kennametal 4050712

MFR# 4050712ISO/ANSI# CNMG190612Series KENLOC

$52.17List $63.68 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeKCU10
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 4050712 is a CNMG190612RP carbide indexable insert, grade KCU10, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeCNMG643
Ansi size code643
Chip breakerRP
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Hole diameter0.3125
Included angle80
Industry standard numberCNMG643RP
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.7616
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code643
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG190612RP
Iso insert codeCNMG190612
Iso size code190612
Length range0.7000 - 10.0000
Manufacturers catalog number4050712
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.2536
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle5
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in3/4
Wiper edgeNo
