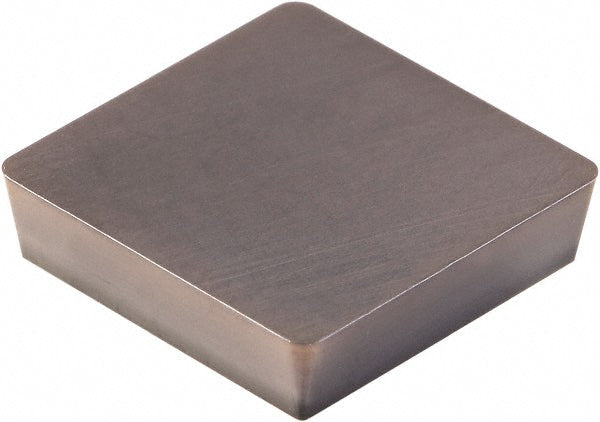

SPGN120308 Carbide Insert, Grade KCU10, TiAlN - Kennametal 4050765

Kennametal

SPGN120308 Carbide Insert, Grade KCU10, TiAlN - Kennametal 4050765

MFR# 4050765ISO/ANSI# SPG120308Series KENDEX

$29.94List $36.55 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeS - Square
GradeKCU10
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 4050765 is a SPGN120308 carbide indexable insert, grade KCU10, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeSPG422
Ansi size code422
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Included angle90
Industry standard numberSPG422
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length in1/2
Insert materialCarbide
Insert shapeS - Square
Insert size code422
Insert styleSPG
Insert thickness in1/8
Iso codeSPGN120308
Iso insert codeSPG120308
Iso size code120308
Length range0.5000 - 0.6000
Manufacturers catalog number4050765
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.1665
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle0
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in1/2
Wiper edgeNo
