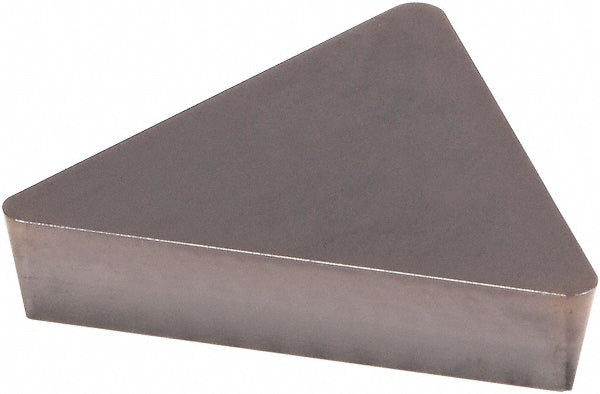

TPGN160308 Carbide Insert, Grade KCU10, TiAlN - Kennametal 4050775

Kennametal

TPGN160308 Carbide Insert, Grade KCU10, TiAlN - Kennametal 4050775

MFR# 4050775ISO/ANSI# TPG322Series KENDEX

$25.56List $31.20 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeTriangle
GradeKCU10
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 4050775 is a TPGN160308 carbide indexable insert, grade KCU10, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Chip breakerFlat Top
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Included angle60
Industry standard numberTPG322
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.6495
Insert materialCarbide
Insert shapeTriangle
Insert size code322
Insert styleTPG
Insert thickness in1/8
Iso codeTPGN160308
Length range0.6000 - 0.6500
Manufacturers catalog number4050775
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.2163
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle0
Relief angle11
StandardsANSI; ISO
Tolerance codeG
Width0.6495
Wiper edgeNo
