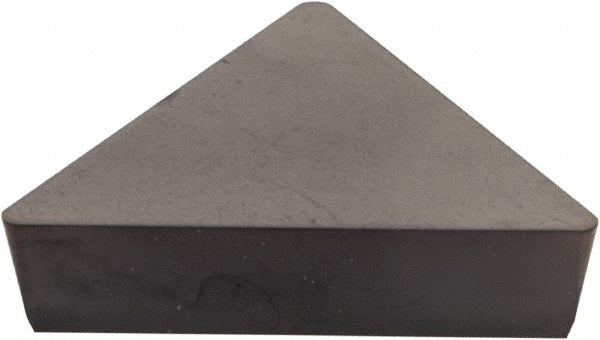

TPGN220408 Carbide Insert, Grade KCU10, TiAlN - Kennametal 4050779

Kennametal

TPGN220408 Carbide Insert, Grade KCU10, TiAlN - Kennametal 4050779

MFR# 4050779ISO/ANSI# TPG220408Series KENDEX

$37.30List $45.53 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeT - Triangle
GradeKCU10
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 4050779 is a TPGN220408 carbide indexable insert, grade KCU10, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeTPG432
Ansi size code432
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Included angle60
Industry standard numberTPG432
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length0.8661
Insert materialCarbide
Insert shapeT - Triangle
Insert size code432
Insert styleTPG
Insert thickness in3/16
Iso codeTPGN220408
Iso insert codeTPG220408
Iso size code220408
Length range0.7000 - 10.0000
Manufacturers catalog number4050779
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.2884
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle0
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width0.8661
Wiper edgeNo
