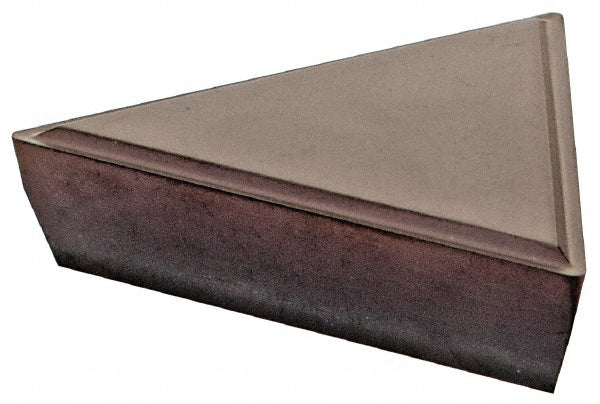

TPGR220404K Carbide Insert, Grade KCU10, TiAlN - Kennametal 4050786

Kennametal

TPGR220404K Carbide Insert, Grade KCU10, TiAlN - Kennametal 4050786

MFR# 4050786ISO/ANSI# TPGF431Series KENDEX

$43.10List $52.61 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeTriangle
GradeKCU10
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 4050786 is a TPGR220404K carbide indexable insert, grade KCU10, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Chip breakerCommon
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Included angle60
Industry standard numberTPGF431
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.8661
Insert materialCarbide
Insert shapeTriangle
Insert size code431
Insert styleTPGF
Insert thickness in3/16
Iso codeTPGR220404K
Length range0.7000 - 10.0000
Manufacturers catalog number4050786
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.2884
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle11
StandardsANSI; ISO
Tolerance codeG
Width0.8661
Wiper edgeNo
