Kennametal

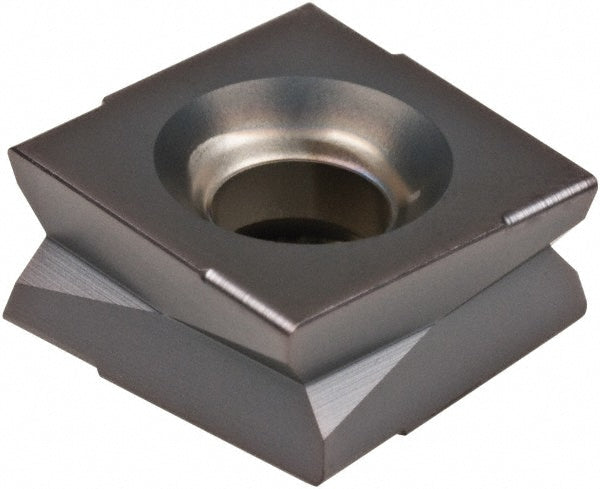

C8FIX150605RRN Carbide Insert, Grade KCU10, TiAlN - Kennametal 4051125
MFR# 4051125ISO/ANSI# C8FIX150605Series Fix-Perfect
$42.13List $51.42
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeNon-ISO Specialty Shapes
GradeKCU10
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 4051125 is a C8FIX150605RRN carbide indexable insert, grade KCU10, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi insert codeC8FIX150605
Ansi size code150605
Chip breakerRN
Chip breaker operationRoughing; Medium Machining
Coating finishTiAlN
Coating processPVD
Corner radius0.0197
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Hole diameter0.2400
Included angle78
Inscribed circle0.3937
Insert handRight Hand
Insert holding methodLever
Insert length0.3937
Insert materialCarbide
Insert shapeNon-ISO Specialty Shapes
Insert size code150605
Insert styleC8FIX
Insert thickness0.2598
Iso codeC8FIX150605RRN
Iso insert codeC8FIX150605
Iso size code150605
Length range0.3000 - 0.4000
Manufacturers catalog number4051125
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.1311
Multi use applicationTurning; Facing
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle6
Relief angle6
Side clearancePositive
StandardsANSI; ISO
Width0.3937
Wiper edgeNo
