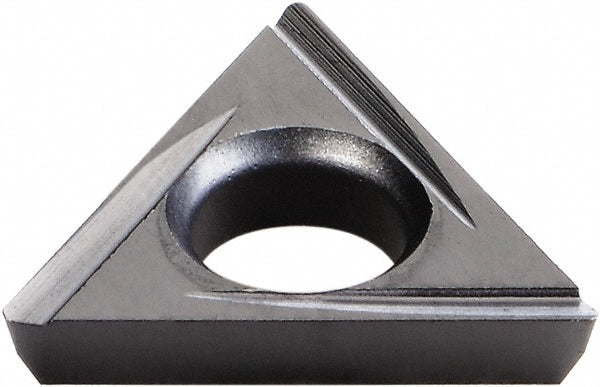

TDHH07T1202L Carbide Insert, Grade KCU10, TiAlN - Kennametal 4053339

Kennametal

TDHH07T1202L Carbide Insert, Grade KCU10, TiAlN - Kennametal 4053339

MFR# 4053339ISO/ANSI# TDHH07T1202LSeries Screw-On

$24.09List $29.41 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeTriangle
GradeKCU10
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 4053339 is a TDHH07T1202L carbide indexable insert, grade KCU10, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

ChipbreakerCommon
Coating finishTiAlN
Coating processPVD
Corner radius in1/128
Hole diameter0.0938
Included angle60
Inscribed circle0.1575
Insert handLeft Hand
Insert holding methodScrew
Insert materialCarbide
Insert shapeTriangle
Insert size code12807505
Insert styleTDHH
Iso codeTDHH07T1202L
Length0.2772
Manufacturers catalog number4053339
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.0923
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle15
StandardsANSI; ISO
Width0.2772
