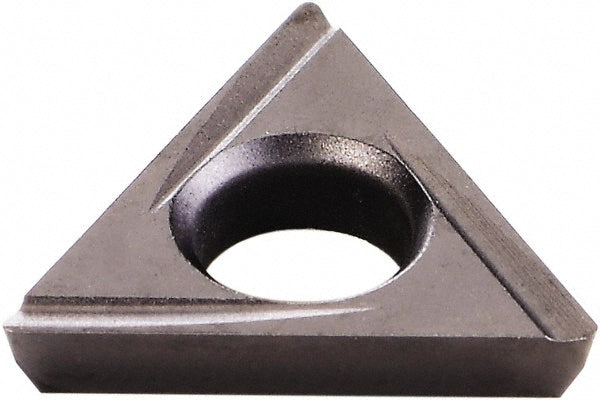

TDHH07T1202R Carbide Insert, Grade KCU10, TiAlN - Kennametal 4053340

MFR# 4053340ISO/ANSI# TDHH07T1202RSeries Screw-On

$24.09List $29.41 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeTriangle
GradeKCU10
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 4053340 is a TDHH07T1202R carbide indexable insert, grade KCU10, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

ChipbreakerCommon
Coating finishTiAlN
Coating processPVD
Corner radius in1/128
Hole diameter0.0938
Included angle60
Inscribed circle0.1575
Insert handRight Hand
Insert holding methodScrew
Insert materialCarbide
Insert shapeTriangle
Insert size code12807505
Insert styleTDHH
Iso codeTDHH07T1202R
Length0.2772
Manufacturers catalog number4053340
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.0923
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle15
StandardsANSI; ISO
Width0.2772
