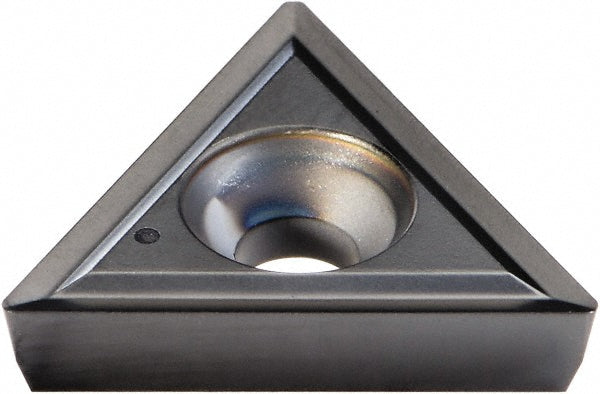

TPGH160304 Carbide Insert, Grade KCU10, TiAlN - Kennametal 4053344

Kennametal

TPGH160304 Carbide Insert, Grade KCU10, TiAlN - Kennametal 4053344

MFR# 4053344ISO/ANSI# TPHH160304Series Screw-On

$28.79List $35.14 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeKCU10
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 4053344 is a TPGH160304 carbide indexable insert, grade KCU10, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeTPHH321
Ansi size code321
Chip breakerLF
Chip breaker operationFinishing; Light Machining
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Hole diameter0.1310
Included angle60
Industry standard numberTPHH321LF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6496
Insert materialCarbide
Insert shapeT - Triangle
Insert size code321
Insert styleTPHH
Insert thickness in1/8
Iso codeTPGH160304
Iso insert codeTPHH160304
Iso size code160304
Length range0.6000 - 0.6500
Manufacturers catalog number4053344
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.2163
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeH
Width0.6496
Wiper edgeNo
