Kennametal

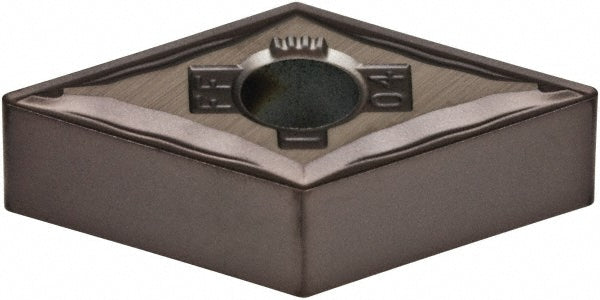

DNMG150404FF Carbide Insert, Grade KCU10, TiAlN - Kennametal 4053377
MFR# 4053377ISO/ANSI# DNMG150404Series KENLOC
$33.09List $40.39
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeKCU10
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 4053377 is a DNMG150404FF carbide indexable insert, grade KCU10, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi insert codeDNMG431
Ansi size code431
Chip breakerFF
Chip breaker operationFinishing
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Hole diameter0.2031
Included angle55
Industry standard numberDNMG431FF
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.2208
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code431
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150404FF
Iso insert codeDNMG150404
Iso size code150404
Length range0.7000 - 10.0000
Manufacturers catalog number4053377
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.4065
Maximum depth of cut frac in13/32
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle20
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
