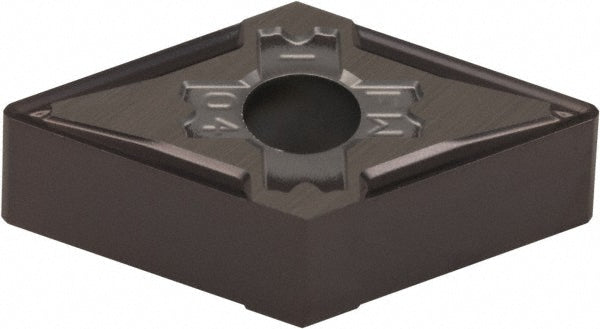

DNMG150408FW Carbide Insert, Grade KCU10, TiAlN - Kennametal 4053383
MFR# 4053383ISO/ANSI# DNMG150408Series KENLOC
$33.36List $40.72
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeKCU10
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 4053383 is a DNMG150408FW carbide indexable insert, grade KCU10, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi insert codeDNMG432
Ansi size code432
Chip breakerFW
Chip breaker operationWiper - Finishing
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Hole diameter0.2031
Included angle55
Industry standard numberDNMG432FW
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.2208
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150408FW
Iso insert codeDNMG150408
Iso size code150408
Length range0.7000 - 10.0000
Manufacturers catalog number4053383
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.4065
Maximum depth of cut frac in13/32
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle10
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeYes
