Kennametal

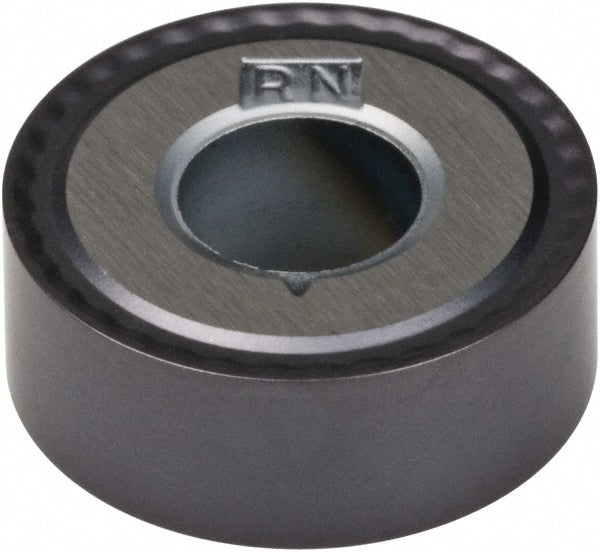

RNMG120400RN Carbide Insert, Grade KCU10, TiAlN - Kennametal 4053408
MFR# 4053408ISO/ANSI# RNMG120400Series KENLOC
$22.07List $26.94
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeR - Round
GradeKCU10
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 4053408 is a RNMG120400RN carbide indexable insert, grade KCU10, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi insert codeRNMG43
Ansi size code43
Chip breakerRN
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/4
Cutting edge styleChamfered; Honed
Full radiusYes
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Hole diameter0.2031
Included angle360
Industry standard numberRNMG43RN
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCarbide
Insert shapeR - Round
Insert size code43
Insert styleRNMG
Insert thickness in3/16
Iso codeRNMG120400RN
Iso insert codeRNMG120400
Iso size code120400
Length range0.5000 - 0.6000
Manufacturers catalog number4053408
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.1665
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
