Kennametal

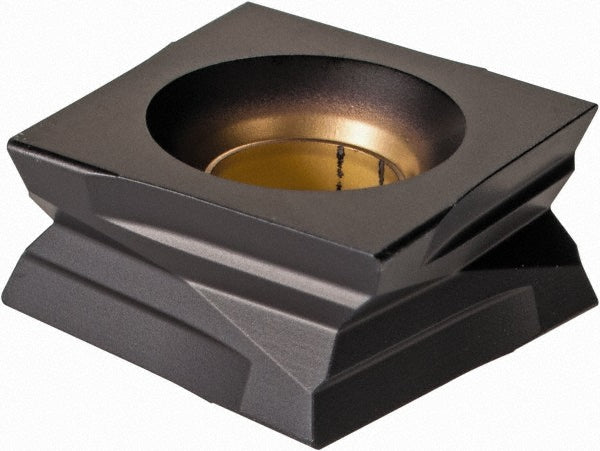

C8FIX150603RMP Carbide Insert, Grade KCP25, TiCN - Kennametal 4054410
MFR# 4054410ISO/ANSI# C8FIX150603Series Fix-Perfect
$45.41List $55.43
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeNon-ISO Specialty Shapes
GradeKCP25
MaterialCarbide
CoatingTiCN
Description
The Kennametal 4054410 is a C8FIX150603RMP carbide indexable insert, grade KCP25, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeC8FIX150603
Ansi size code150603
Chip breakerMP
Chip breaker operationRoughing; Medium Machining
Coating finishTiCN
Coating processMTCVD
Corner radius0.0118
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.2402
Included angle78
Inscribed circle0.3660
Insert handRight Hand
Insert holding methodLever
Insert length0.3660
Insert materialCarbide
Insert shapeNon-ISO Specialty Shapes
Insert size code150603
Insert styleC8FIX
Insert thickness0.2598
Iso codeC8FIX150603RMP
Iso insert codeC8FIX150603
Iso size code150603
Length range0.3000 - 0.4000
Manufacturers catalog number4054410
Manufacturer gradeKCP25
Material gradeC2; C3; C6; C7
Maximum depth of cut0.1219
Multi use applicationTurning; Facing
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle12
Relief angle6
Side clearancePositive
StandardsANSI; ISO
Width0.3660
Wiper edgeNo
