Kennametal

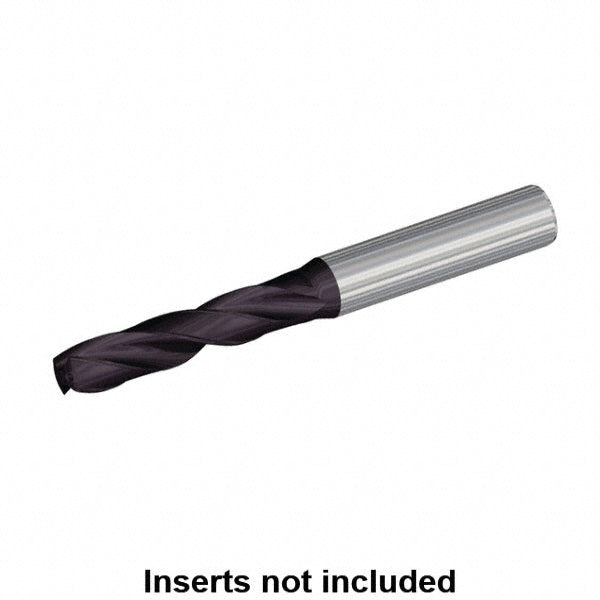

#25 Solid Carbide Drill Bit, Multi-layer, 140° point - Kennametal 4054517
MFR# 4054517Series Kenna Universal
$136.82List $167.01
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingMulti-layer
Description
The Kennametal 4054517 is a #25 Solid Carbide drill bit with a Multi-layer finish, 140° point. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous, high-temp alloy, hardened materials. Series Kenna Universal.
Specifications
Coating finishMulti-layer
Coolant throughYes
Cutting directionRight Hand
Double marginNo
Drill bit diameter tolerance0.0002 to 0.0006 in
Drill bit materialSolid Carbide
Drill bit size0.1495
Drill bit size range0.1000 - 0.1500
Drill bit size wire#25
Drill point angle degrees140
Drill point length0.0245
Flute by diameter ratio6xD
Flute length1.4170
Flute typeRegular Spiral
Material gradeSubmicron
Maximum drilling depth in1-9/64
Number of flats0
Number of flutes2
Overall length2.9130
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous; High-Temp Alloy; Hardened Materials
Shank diameter0.1250
Shank length1.4170
Shank typeStraight
Specification designationDIN
Specification numberDIN 6535/DIN 69090-3
Spiral typeRegular
Tool applicationDrilling
Web configurationTapered
