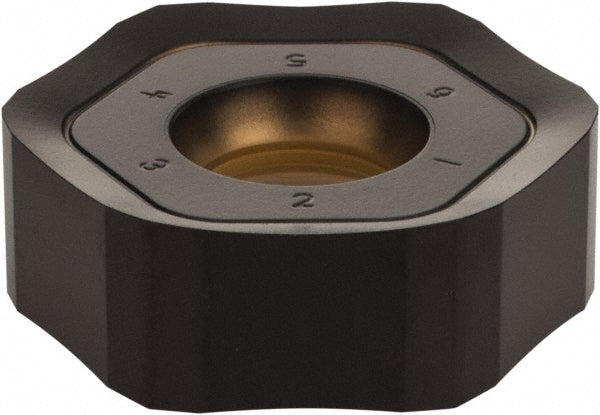

HNGJ1307ANENGD Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 4057865
MFR# 4057865ISO/ANSI# HNGJ1307ANENGDCat# HNGJ1307ANENGDSeries HNGJ
$59.29List $72.37
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC7/8
ShapeHexagon
GradeKCPK30
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 4057865 is a HNGJ1307ANENGD solid carbide indexable insert, grade KCPK30, TiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.
Specifications
Ansi codeHNGJ75ANENGD
Chip breakerGD
Coating finishTiN
Coating processCVD
Corner radius in3/64
Cutter series compatibilityDodeka
Cutting edge styleHoned
Hole diameter0.3150
Included angle degree120
Inscribed circle in7/8
Inscribed circle range0.7000 to 1.0000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeHexagon
Insert size7
Insert size code75
Insert styleHNGJ
Iso codeHNGJ1307ANENGD
Length in7/8
Length range0.7000 to 0.9000
Manufacturers catalog numberHNGJ1307ANENGD
Manufacturer gradeKCPK30
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1; C5; C6
Maximum depth of cut0.5052
Multi use toolYes
Number of cutting edges12
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2919
Thickness range0.2500 to 0.3500
Width in7/8
