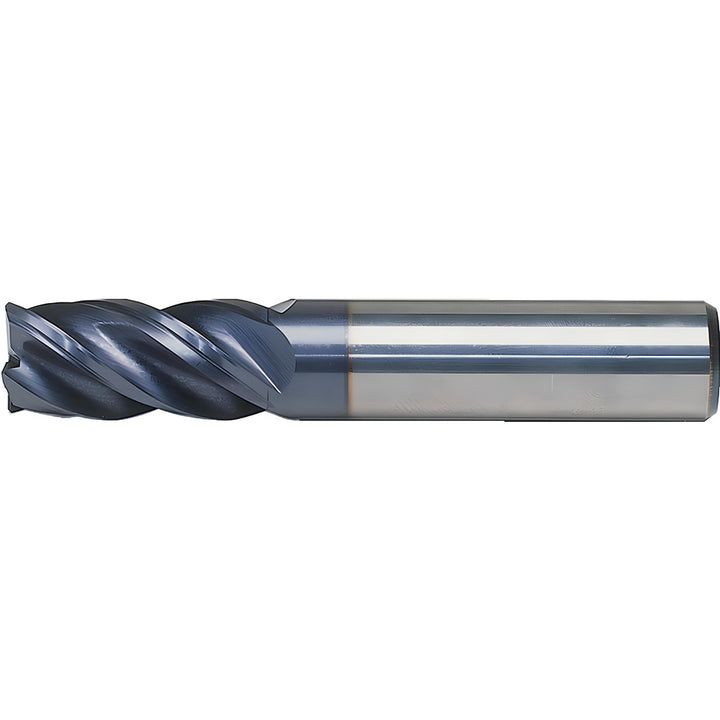

5/8" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 4067266

Kennametal

5/8" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 4067266

MFR# 4067266Series HPHV

$383.10List $491.35 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Kennametal 4067266 is a 5/8 4-flute Solid Carbide (Submicron) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, hard material. 2-1/8 length of cut, 4 overall length. Series HPHV.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.0300
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
For use withEM-CV Form AD; EM IN-HSK Form A; EM IN-HSK Form A; EM-CV Form AD; EM-CV Form AD; EM-CV Form AD; EM-CV Form AD
Helix styleHigh
Length of cut in2-1/8
Length typeLong
Material applicationSteel; Stainless Steel; Cast Iron; Hard Material
Material gradeSubmicron
Material removal typeRoughing & Finishing
Mill diameter in5/8
Mill diameter tolerance+0.000000/-0.002000 in
Number of flutes4
Overall length in4
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
Reach length in2-1/8
Shank diameter in5/8
Shank diameter tolerance+0.00000/-0.00043 in
Shank typeWeldon Flat
Single or double endSingle
Variable helixNo
Variable indexNo
