Kennametal

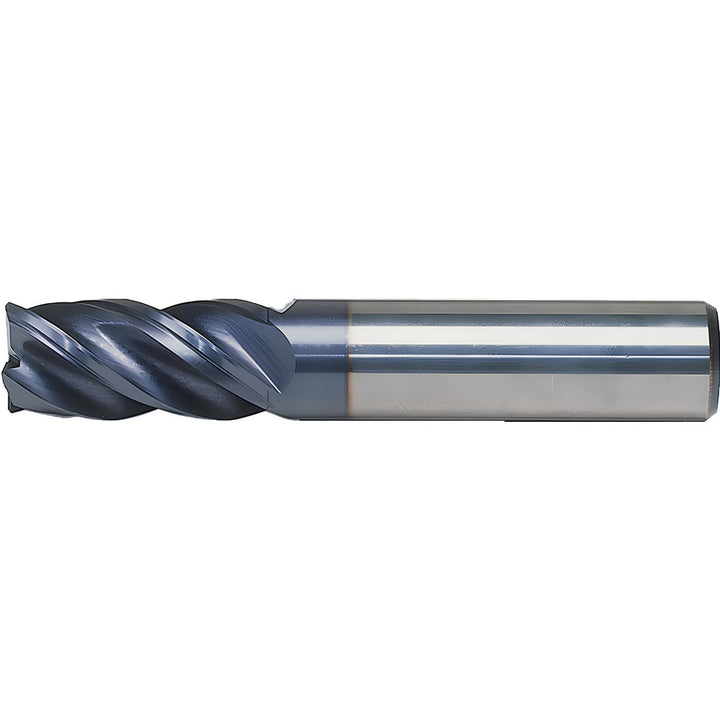

3/4" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Kennametal 4067270

MFR# 4067270Cat# HPHV750S4088CHSeries HPHV

$466.62List $598.47 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The Kennametal 4067270 is a 3/4 4-flute Solid Carbide (KCPM15) corner radius & corner chamfer end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, hard material. 7/8 length of cut, 3-1/2 overall length. Series HPHV.

Specifications

Additional informationPlunge Milling

CentercuttingYes

Chamfer angle45

Chamfer length0.0200

Chamfer width0.0200

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner styleCorner Chamfer

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeVariable

Helix angle38; Side Milling

Helix styleMedium

Length of cut in7/8

Length typeRegular

Manufacturers catalog numberHPHV750S4088CH

Material gradeKCPM15

Material removal typeRoughing & Finishing

Mill diameter in3/4

Mill diameter tolerance+0.0000 to -0.0020 in

Number of flutes4

Overall length in3-1/2

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material

RampingBlank

Reach length in7/8

Shank diameter in3/4

Shank diameter tolerance+0.00000 to -0.00035 in

Shank typeWeldon Flat

Shoulder millingSquare End

Single or double endSingle

SlottingSq

Tool dimensionsFlute Configuration: 4

Variable helixNo

Variable indexYes
