3/4" 4-Flute Solid Carbide Ball End Mill, Tplus - Helical Solutions 83300

Helical Solutions

3/4" 4-Flute Solid Carbide Ball End Mill, Tplus - Helical Solutions 83300

MFR# 83300Series HSV-4

$382.69List $439.01 Save 12%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/4
Flutes4
MaterialSolid Carbide
CoatingTplus

Description

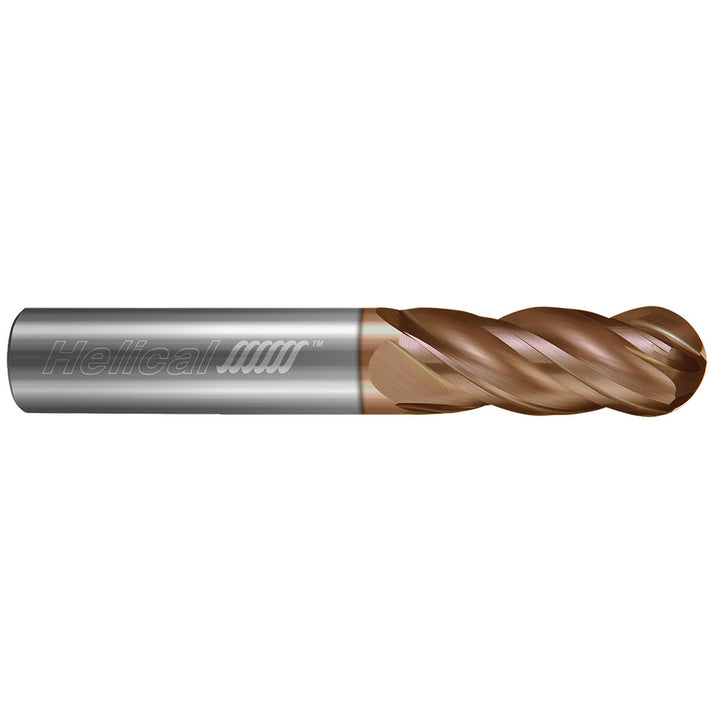

The Helical Solutions 83300 is a 3/4 4-flute Solid Carbide (Carbide) ball end mill with a Tplus finish for longer tool life. Suited for stainless steel, high-temp alloy, hardened materials. 7/8 length of cut, 3 overall length. Series HSV-4.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTplus
Coating finish familyTplus
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle35
Length of cut in7/8
Length typeStub
Manufacturers catalog number83300
Material gradeCarbide
Material removal typeRoughing & Finishing
Mill diameter in3/4
Mill diameter tolerance+0.0000/-0.0020 in
Nose radius0.3750
Number of flutes4
Overall length in3
Overall length tolerance+0.0620/-0.06250 in
Primary workpiece materialStainless Steel; High-Temp Alloy; Hardened Materials
Reach length in7/8
Secondary workpiece materialSteel; Stainless Steel; Cast Iron
Shank diameter in3/4
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Tir maximum0.0005
Variable helixNo
Variable indexYes
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
