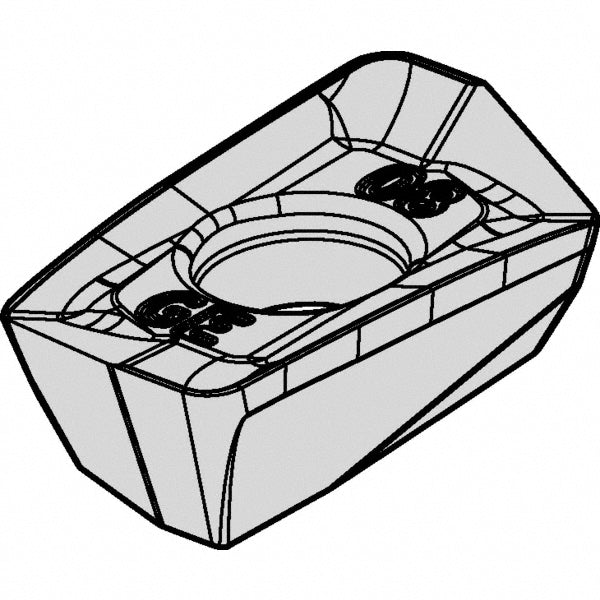

EDPT10T308PDSRGE Solid Carbide Insert, Grade KCPM20, TiN - Kennametal 4089042

Kennametal

EDPT10T308PDSRGE Solid Carbide Insert, Grade KCPM20, TiN - Kennametal 4089042

MFR# 4089042ISO/ANSI# EDPT10T308PDSRGECat# EDPT10T308PDSRGESeries EDPT

$18.24List $22.26 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeKCPM20
MaterialSolid Carbide
CoatingTiN

Description

The Kennametal 4089042 is a EDPT10T308PDSRGE solid carbide indexable insert, grade KCPM20, TiN coated. Suited for steel, stainless steel, cast iron, hard material.

Specifications

Ansi codeEP1008SGE
Chip breakerGE
Coating finishTiN
Coating processMTCVD
Corner radius in1/32
Cutter series compatibilityMill 1-10
Cutting edge styleChamfered; Honed
Hole diameter0.1181
Included angle degree75
Inscribed circle0.2650
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code10T308
Insert styleEDPT
Iso codeEDPT10T308PDSRGE
Length0.4740
Length range0.4500 to 0.5000
Manufacturers catalog numberEDPT10T308PDSRGE
Manufacturer gradeKCPM20
Material applicationSteel; Stainless Steel; Cast Iron; Hard Material
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1480
Thickness range0.1250 to 0.1500
Width0.2650
