Kennametal

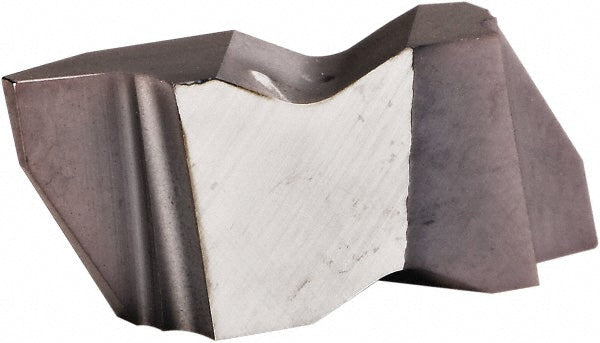

Carbide Insert, Grade KCU25, AlTiN - Kennametal 4109624
MFR# 4109624Series Top Notch
$34.21List $41.75
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 4109624 is a carbide indexable insert, grade KCU25, AlTiN coated.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0050
Finish coatingAlTiN
Included angle29
Insert handLeft Hand
Insert materialCarbide
Insert size3
Insert styleNA
Internal pitch10 TPI
Manufacturer gradeKCU25
Thickness0.1949
Thread standardAcme
Thread typeInternal; External
Tip to top of insert0.1492
Width of cutting tip0.0319
