Kennametal
Carbide Insert, Grade KCU25, AlTiN - Kennametal 4109641
MFR# 4109641Series Top Notch
$34.75List $42.42
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description

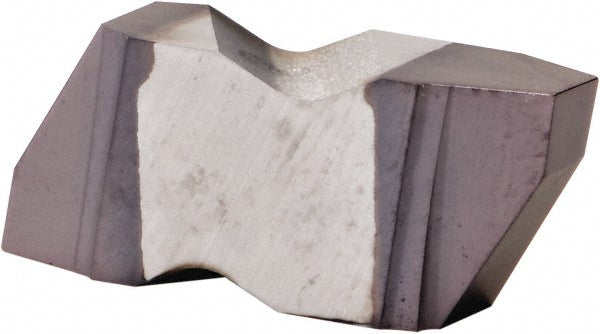

The Kennametal 4109641 is a carbide indexable insert, grade KCU25, AlTiN coated.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0050
Finish coatingAlTiN
Included angle29degree
Insert handRight Hand
Insert materialCarbide
Insert size3
Insert styleNAS
Internal pitch4 TPI
Manufacturer gradeKCU25
Thickness0.1949in
Thread standardStub Acme
Thread typeInternal; External
Tip to top of insert0.1492
Width of cutting tip0.1004
