Kennametal

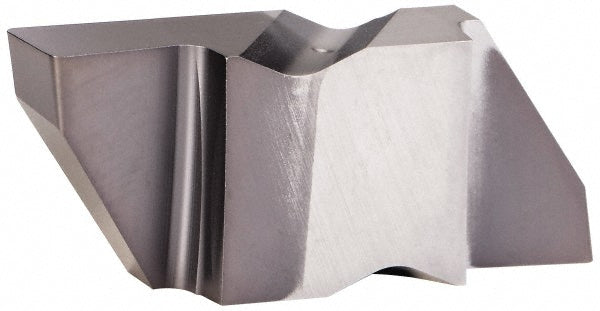

Carbide Insert, Grade KCU25, AlTiN - Kennametal 4109779
MFR# 4109779Series Top Notch
$47.62List $58.12
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 4109779 is a carbide indexable insert, grade KCU25, AlTiN coated.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0225
Cutting height0.4530
Cutting width0.2500
Full radiusNo
Included angle degree55
Insert handLeft Hand
Insert materialCarbide
Insert seat size4
Insert size4250
Insert styleNG
Lead angle0
Manufacturer gradeKCU25
Maximum depth of cut0.2500
Maximum depth of cut range0.2000 to 0.3000
Measurement typeDecimal Inch
Msc manufacturer numberNG4250R/L
Multi use toolNo
RakeNeutral
Rake angle0
