Kennametal

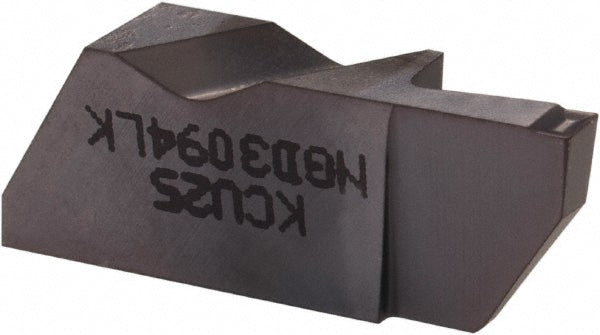

Carbide Insert, Grade KCU25, AlTiN - Kennametal 4109846
MFR# 4109846Series Top Notch
$28.35List $34.60
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 4109846 is a carbide indexable insert, grade KCU25, AlTiN coated.
Specifications
Chip breakerK
Coating finishAlTiN
Coating processPVD
Corner radius0.0075
Cutting height0.3440
Cutting width0.0941
Full radiusNo
Included angle degree55
Insert handLeft Hand
Insert holding methodClamp
Insert materialCarbide
Insert size3094
Insert styleNGD
Manufacturer gradeKCU25
Material gradeC2; C6
Maximum depth of cut0.2500
Maximum depth of cut range0.2000 to 0.3000
Measurement typeMetric
Msc manufacturer numberNGD3094R/LK
Multi use toolNo
Overall width0.196
