Kennametal
Carbide Insert, Grade KCU25, AlTiN - Kennametal 4109932
MFR# 4109932Series Top Notch
$27.10List $33.08
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description

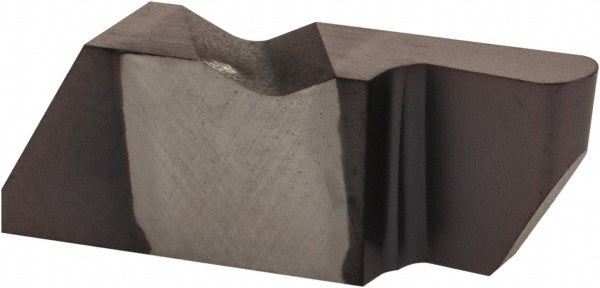

The Kennametal 4109932 is a carbide indexable insert, grade KCU25, AlTiN coated.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0626
Cutting height0.3440
Cutting width0.1252
Full radiusYes
Included angle degree55
Insert handRight Hand
Insert holding methodClamp
Insert materialCarbide
Insert size3062
Insert styleNRD
Manufacturer gradeKCU25
Material gradeC2; C6
Maximum depth of cut0.2500
Maximum depth of cut range0.2000 to 0.3000
Measurement typeMetric
Multi use toolNo
Overall length0.9856
Overall width0.196
