Kennametal

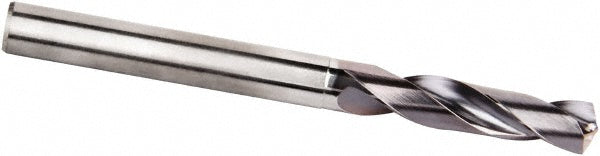

0.2362" Solid Carbide Stub Drill Bit, Multilayer TiAlN, 135° point - Kennametal 4111774
MFR# 4111774Series B221A-HP
$109.80
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingMultilayer TiAlN
Description
The Kennametal 4111774 is a 0.2362" Solid Carbide Stub drill bit with a Multilayer TiAlN finish, 135° point. Series B221A-HP.
Specifications
Coating finishMultilayer TiAlN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0002 to +0.0006 in; +0.004 to +0.016 mm
Drill bit size0.2362
Drill bit size range0.2000 to 0.2500
Drill length typeStub
Drill point angle135
Drill point length0.0443
Flute by diameter ratio3xD
Flute length1.1024
Flute typeSpiral
Maximum drilling depth0.7874
Number of flutes2
Overall length2.5984
Point typeStandard
Shank diameter (mm)6.00
Shank length1.4173
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6537K
Spiral typeRegular
Tool materialSolid Carbide
Web configurationTapered
