Kennametal

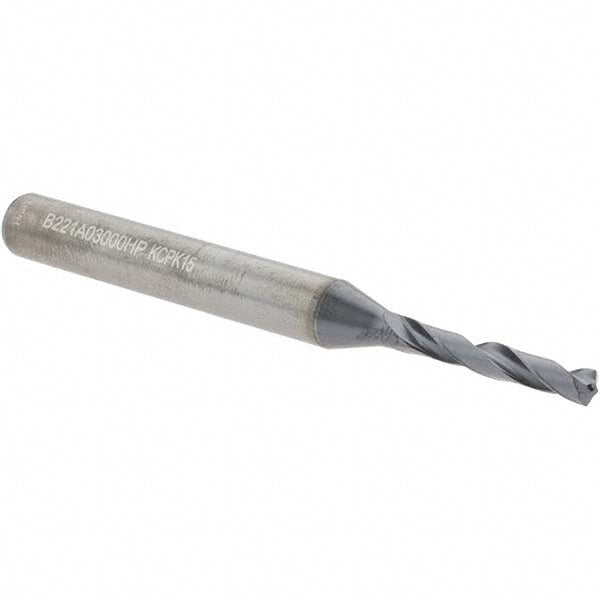

0.1181" Solid Carbide Stub Drill Bit, Multilayer TiAlN - Kennametal 4111824
MFR# 4111824Series B221A-HP
$105.90
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingMultilayer TiAlN
Description
The Kennametal 4111824 is a 0.1181" Solid Carbide Stub drill bit with a Multilayer TiAlN finish. Series B221A-HP.
Specifications
Coating finishMultilayer TiAlN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.002 to +0.012 mm
Drill bit size0.1181
Drill bit size range0.1000 to 0.1500
Drill length typeStub
Drill point length0.0224
Flute by diameter ratio3xD
Flute length0.7874
Flute typeSpiral
Maximum drilling depth0.5512
Number of flutes2
Overall length2.4409
Point typeStandard
Shank diameter (mm)6.00
Shank length1.4173
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6537K
Spiral typeRegular
Tool materialSolid Carbide
Web configurationTapered
