Kennametal
Carbide Insert, Grade KCU25, AlTiN - Kennametal 4113711
MFR# 4113711Series A4
$42.25List $51.57
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description

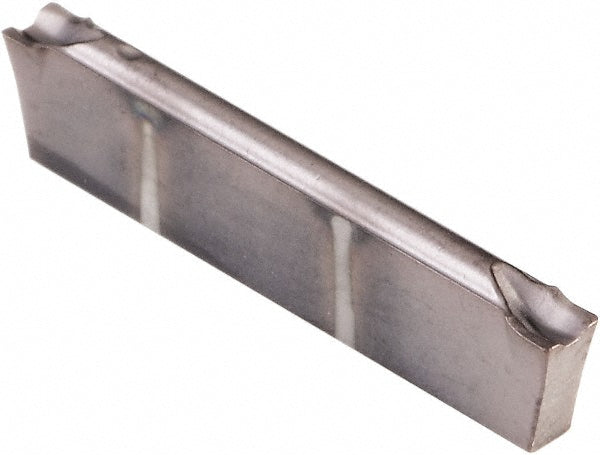

The Kennametal 4113711 is a carbide indexable insert, grade KCU25, AlTiN coated.
Specifications
ChipbreakerCF
Coating finishAlTiN
Coating processPVD
Corner radius0.0079
Cutting height0.1610
Cutting width0.0807
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert seat size2
Insert size code0205
Insert styleA4C
Lead angle0
Lead angle directionNeutral
Manufacturer gradeKCU25
Material gradeC2; C6
Overall length0.7880
Relief angle2.00
Single or double endDouble
