Kennametal

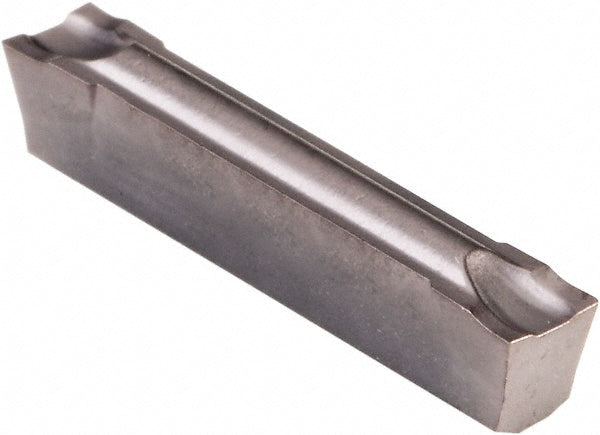

Carbide Insert, Grade KCU25, AlTiN - Kennametal 4114285
MFR# 4114285Series A4
$39.93List $48.74
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 4114285 is a carbide indexable insert, grade KCU25, AlTiN coated.
Specifications
ChipbreakerCF
Coating finishAlTiN
Coating processPVD
Corner radius0.0080
Cutting height0.1580
Cutting width0.1200
Full radiusNo
Insert holding methodClamp
Insert materialCarbide
Insert seat size3
Insert size code0305
Insert styleA4C
Lead angle6
Lead angle directionLeft Hand
Manufacturer gradeKCU25
Material gradeC2; C6
Overall length0.7913
Relief angle2.00
Single or double endDouble
