Kennametal
Solid Carbide Insert, Grade KCU25, AlTiN - Kennametal 4114338
MFR# 4114338Cat# A4G187I04P2GMNSeries A4
$41.74List $50.95
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialSolid Carbide
CoatingAlTiN
Description

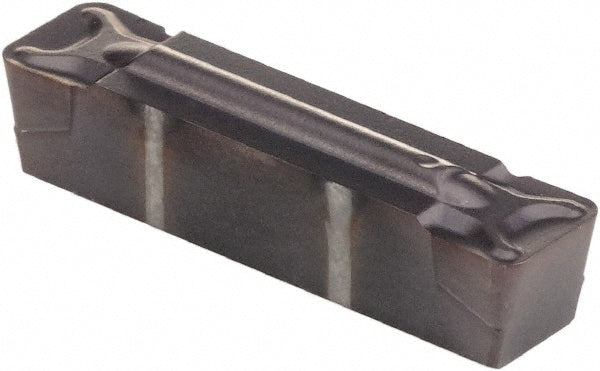

The Kennametal 4114338 is a solid carbide indexable insert, grade KCU25, AlTiN coated.
Specifications
Chip breakerGMN
Coating finishAlTiN
Coating processPVD
Corner radius0.0312
Cutting height0.1870
Cutting width0.1874
Full radiusNo
Included angle degree90
Insert handNeutral
Insert materialSolid Carbide
Insert seat size4
Insert size187
Insert styleG
Manufacturers catalog numberA4G187I04P2GMN
Manufacturer gradeKCU25
Material gradeC2; C6
Maximum depth of cut0.1378
Maximum depth of cut range0.1000 to 0.1500
Multi use toolYes
Overall length0.7874
Single or double endDouble
